us_states_with_inset.jl

# MIT LICENSE
# Copyright (c) 2025, Richard Careaga
# Permission is hereby granted, free of charge, to any person obtaining a copy
# of this software and associated documentation files (the "Software"), to deal
# in the Software without restriction, including without limitation the rights
# to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
# copies of the Software, and to permit persons to whom the Software is
# furnished to do so, subject to the following conditions:
# The above copyright notice and this permission notice shall be included in all
# copies or substantial portions of the Software. This software is provided
# without representation or warranty, including merchantability.

using CairoMakie
using GeoDataFrames
using DataFramesMeta
import GeometryOps as GO
using GeoInterface
using Proj

# Define the Albers Equal Area projection for continental US
const AEA_CONUS = "+proj=aea +lat_1=29.5 +lat_2=45.5 +lat_0=37.5 +lon_0=-96 +x_0=0 +y_0=0 +datum=NAD83 +units=m +no_defs"

# Define projections for Alaska and Hawaii (centered on their regions)
const AEA_ALASKA = "+proj=aea +lat_1=55 +lat_2=65 +lat_0=50 +lon_0=-154 +x_0=0 +y_0=0 +datum=NAD83 +units=m +no_defs"
const AEA_HAWAII = "+proj=aea +lat_1=8 +lat_2=18 +lat_0=13 +lon_0=-157 +x_0=0 +y_0=0 +datum=NAD83 +units=m +no_defs"

# Function to reproject geometry using Proj.jl
function reproject_geom_proj(geom, source_proj4, target_proj4)
    # Create transformation
    trans = Proj.Transformation(source_proj4, target_proj4, always_xy=true)

    # Transform the geometry
    return GO.transform(geom) do point
        x, y = trans(point[1], point[2])
        return (x, y)
    end
end

# Improved fit_to_bbox function that works with projected coordinates
function fit_to_bbox_projected(geom, target_min, target_max; rotation_degrees=0)
    # Get geometry bounds
    extent = GeoInterface.extent(geom)
    min_pt = (extent.X[1], extent.Y[1])
    max_pt = (extent.X[2], extent.Y[2])

    # Compute scale factors
    scale_x = (target_max[1] - target_min[1]) / (max_pt[1] - min_pt[1])
    scale_y = (target_max[2] - target_min[2]) / (max_pt[2] - min_pt[2])
    scale = min(scale_x, scale_y)  # uniform scaling

    # Compute center-based transformation
    center_src = ((min_pt[1] + max_pt[1]) / 2, (min_pt[2] + max_pt[2]) / 2)
    center_tgt = ((target_min[1] + target_max[1]) / 2, (target_min[2] + target_max[2]) / 2)

    # Convert rotation to radians
    rotation_rad = rotation_degrees * π / 180

    # Apply transformation: translate to origin, scale, rotate, translate to target
    function transform_point(p)
        # Translate to origin and scale
        x, y = (p[1] - center_src[1]) * scale, (p[2] - center_src[2]) * scale

        # Apply rotation if specified
        if rotation_degrees != 0
            x_rot = x * cos(rotation_rad) - y * sin(rotation_rad)
            y_rot = x * sin(rotation_rad) + y * cos(rotation_rad)
            x, y = x_rot, y_rot
        end

        # Translate to target position
        return (x + center_tgt[1], y + center_tgt[2])
    end

    # Apply to all points in geometry
    return GO.transform(transform_point, geom)
end

# Main plotting function
function plot_us_with_insets(states_gdf, alaska_gdf, hawaii_gdf;
                            zoom_to_insets=false,
                            title="",
                            caption="",
                            legend_elements=nothing,
                            legend_labels=nothing,
                            legend_title="",
                            colors=nothing,
                            show_north_arrow=false,
                            show_scale_bar=false)
    # Separate continental US states
    conus_states = @chain states_gdf begin
        @rsubset(:STUSPS ∉ ["AK", "HI", "PR", "VI", "GU", "MP", "AS"])
    end

    # Define source CRS (NAD83 geographic)
    source_crs = "+proj=longlat +datum=NAD83 +no_defs"

    # Reproject continental US to Albers Equal Area
    conus_geoms_projected = [reproject_geom_proj(g, source_crs, AEA_CONUS) for g in conus_states.geometry]

    # Reproject Alaska
    ak_geom = alaska_gdf.geometry[1]  # assuming single geometry
    # First project Alaska using its own Albers projection
    ak_geom_alaska_aea = reproject_geom_proj(ak_geom, source_crs, AEA_ALASKA)
    # Then reproject to continental US projection for consistent units
    ak_geom_conus_proj = reproject_geom_proj(ak_geom, source_crs, AEA_CONUS)

    # Reproject Hawaii
    hi_geom = hawaii_gdf.geometry[1]  # assuming single multipolygon

    # Filter to just the main inhabited islands (first 10 polygons)
    # Get the component polygons
    hi_polygons = GI.getgeom(hi_geom)

    # Take only the first 10 polygons (the inhabited islands)
    inhabited_polygons = collect(Iterators.take(hi_polygons, 10))

    # Create a new MultiPolygon with just the inhabited islands
    hi_geom_filtered = GI.MultiPolygon(inhabited_polygons)

    # First project Hawaii using its own Albers projection
    hi_geom_hawaii_aea = reproject_geom_proj(hi_geom_filtered, source_crs, AEA_HAWAII)
    # Then reproject to continental US projection
    hi_geom_conus_proj = reproject_geom_proj(hi_geom_filtered, source_crs, AEA_CONUS)

    # Get extent of continental US for positioning
    # Combine all conus geometries to get full extent
    all_conus_points = []
    for geom in conus_geoms_projected
        ext = GeoInterface.extent(geom)
        push!(all_conus_points, (ext.X[1], ext.Y[1]))
        push!(all_conus_points, (ext.X[2], ext.Y[2]))
    end

    conus_min_x = minimum(p[1] for p in all_conus_points)
    conus_max_x = maximum(p[1] for p in all_conus_points)
    conus_min_y = minimum(p[2] for p in all_conus_points)
    conus_max_y = maximum(p[2] for p in all_conus_points)

    conus_width = conus_max_x - conus_min_x
    conus_height = conus_max_y - conus_min_y

    # Calculate a visual reference line for inset placement
    # Instead of using the absolute bottom (Key West), use a line roughly at the
    # bottom of the southwestern states (approximately 31-32°N)
    # This is roughly 7-8 degrees north of Key West, or about 15-20% up from the bottom
    visual_reference_y = conus_min_y + conus_height * 0.15  # Adjust this percentage as needed

    # Debug output
    println("Continental US bounds - X: $conus_min_x to $conus_max_x, Y: $conus_min_y to $conus_max_y")
    println("Visual reference line (SW states bottom): $visual_reference_y")
    println("Difference from true bottom: $(visual_reference_y - conus_min_y) meters")

    # Define target bounding boxes (in projected meters)
    # Alaska: even smaller for conventional layout
    alaska_width = conus_width * 0.15  # Smaller than before
    alaska_height = conus_height * 0.15  # Smaller than before
    # Position Alaska further left with tighter gap
    alaska_x_offset = -conus_width * 0.05  # Less left offset to bring closer to Hawaii
    # Use gap from visual reference line (SW states) not from Key West
    alaska_y_gap = 100000  # 100km gap from visual reference line
    alaska_target_min = (conus_min_x + alaska_x_offset, visual_reference_y - alaska_height - alaska_y_gap)
    alaska_target_max = (conus_min_x + alaska_x_offset + alaska_width, visual_reference_y - alaska_y_gap)

    # Debug output
    println("Alaska Y gap: $alaska_y_gap")
    println("Alaska height: $alaska_height")
    println("Visual reference Y (SW states): $visual_reference_y")
    println("Alaska top edge: $(visual_reference_y - alaska_y_gap)")
    println("Alaska bottom edge: $(visual_reference_y - alaska_height - alaska_y_gap)")
    println("Distance from visual reference to Alaska top: $(alaska_y_gap)")
    println("Alaska bounds - X: $(alaska_target_min[1]) to $(alaska_target_max[1]), Y: $(alaska_target_min[2]) to $(alaska_target_max[2])")

    # Hawaii: make much bigger now that we only have inhabited islands
    hawaii_width = conus_width * 0.45  # Much bigger - was 0.4
    hawaii_height = conus_height * 0.45  # Much bigger
    hawaii_x_center = conus_min_x + conus_width * 0.3  # Position
    hawaii_y_offset = 0  # Keep at same level as Alaska
    hawaii_target_min = (hawaii_x_center - hawaii_width/2, alaska_target_min[2] + hawaii_y_offset)
    hawaii_target_max = (hawaii_x_center + hawaii_width/2, alaska_target_max[2] + hawaii_y_offset)

    # Apply transformations to Alaska and Hawaii
    ak_transformed = fit_to_bbox_projected(ak_geom_conus_proj, alaska_target_min, alaska_target_max)
    hi_transformed = fit_to_bbox_projected(hi_geom_conus_proj, hawaii_target_min, hawaii_target_max, rotation_degrees=30)

    # Create the plot with layout grid
    fig = Figure(size = (1200, 800), backgroundcolor = :white)

    # Main map axis - use subplot grid for better control
    ax = Axis(fig[2, 1:3], aspect = DataAspect(), backgroundcolor = :lightblue)

    # Plot continental US
    if isnothing(colors)
        # Default colors if none provided
        for geom in conus_geoms_projected
            poly!(ax, geom, color = :white, strokecolor = :black, strokewidth = 0.5)
        end
    else
        # Use provided colors for continental US
        conus_colors = colors[1:length(conus_geoms_projected)]
        for (i, geom) in enumerate(conus_geoms_projected)
            poly!(ax, geom, color = conus_colors[i], strokecolor = :black, strokewidth = 0.5)
        end
    end

    # Plot Alaska with appropriate color
    ak_color = isnothing(colors) ? :white : colors[length(conus_geoms_projected) + 1]
    poly!(ax, ak_transformed, color = ak_color, strokecolor = :black, strokewidth = 0.5)

    # Plot Hawaii with appropriate color
    hi_color = isnothing(colors) ? :white : colors[length(conus_geoms_projected) + 2]
    poly!(ax, hi_transformed, color = hi_color, strokecolor = :black, strokewidth = 0.5)

    # Add bounding boxes for insets (optional)
    alaska_bbox_points = [
        Point2(alaska_target_min...),
        Point2(alaska_target_max[1], alaska_target_min[2]),
        Point2(alaska_target_max...),
        Point2(alaska_target_min[1], alaska_target_max[2]),
        Point2(alaska_target_min...)
    ]

    hawaii_bbox_points = [
        Point2(hawaii_target_min...),
        Point2(hawaii_target_max[1], hawaii_target_min[2]),
        Point2(hawaii_target_max...),
        Point2(hawaii_target_min[1], hawaii_target_max[2]),
        Point2(hawaii_target_min...)
    ]

    lines!(ax, alaska_bbox_points, color = :transparent, linewidth = 1, linestyle = :dash)
    lines!(ax, hawaii_bbox_points, color = :transparent, linewidth = 1, linestyle = :dash)

    # Add labels
    text!(ax, "                           Alaska and Hawaii not to scale", position = (alaska_target_min[1] + alaska_width/2, alaska_target_max[2] + 50000),
          align = (:center, :bottom), fontsize = 14, font = "Arial Bold")
    text!(ax, "", position = (hawaii_x_center, hawaii_target_max[2] + 50000),
          align = (:center, :bottom), fontsize = 14, font = "Arial Bold")

    # Set axis limits based on zoom preference
    if zoom_to_insets
        # Zoom to show just the bottom portion with insets
        plot_min_y = min(alaska_target_min[2], hawaii_target_min[2]) - 50000
        plot_max_y = conus_min_y + conus_height * 0.3  # Show only bottom 30% of continental US
        println("Zoomed view: focusing on insets and southern states")
    else
        # Show full map
        plot_min_y = min(alaska_target_min[2], hawaii_target_min[2]) - 50000
        plot_max_y = conus_max_y + 50000
    end

    plot_min_x = min(alaska_target_min[1], conus_min_x) - 50000
    plot_max_x = max(hawaii_target_max[1], conus_max_x) + 50000

    xlims!(ax, plot_min_x, plot_max_x)
    ylims!(ax, plot_min_y, plot_max_y)

    # Debug output
    println("Plot Y limits: $plot_min_y to $plot_max_y (range: $(plot_max_y - plot_min_y))")
    println("Plot X limits: $plot_min_x to $plot_max_x (range: $(plot_max_x - plot_min_x))")
    println("Continental US height: $conus_height")
    println("Y-axis spans $(round((plot_max_y - plot_min_y)/1000)) km")
    println("Expected Y-span should be roughly $(round((conus_height + alaska_height + alaska_y_gap + 100000)/1000)) km")

    # Remove axis decorations
    hidedecorations!(ax)
    hidespines!(ax)

    # Add title if provided
    if !isempty(title)
        Label(fig[1, :], title, fontsize = 24, font = "Arial Bold")
    end

    # Add legend if elements provided
    if !isnothing(legend_elements) && !isnothing(legend_labels)
        Legend(fig[3, 3], legend_elements, legend_labels, legend_title;
               halign = :right, valign = :top, fontsize = 12)
    end

    # Add caption if provided
    if !isempty(caption)
        Label(fig[4, :], caption, fontsize = 10, halign = :right)
    end

    # Add north arrow if requested
    if show_north_arrow
        text!(fig.scene, "⇧\nN",
              position=(0.85, 0.6),
              space=:relative,
              align=(:left, :top),
              fontsize=36, color=:black)
    end

    # Add scale bar if requested
    if show_scale_bar
        # Calculate scale bar for 100 miles
        map_width_meters = conus_width  # width in meters
        miles_to_meters = 160934.4  # 100 miles in meters
        scale_bar_length = (miles_to_meters / map_width_meters) * 0.8  # as fraction of plot width

        scale_bar_x = 0.85
        scale_bar_y = 0.45

        lines!(fig.scene,
               [scale_bar_x - scale_bar_length/2, scale_bar_x + scale_bar_length/2],
               [scale_bar_y, scale_bar_y],
               space=:relative, color=:black, linewidth=3)

        text!(fig.scene, "100 mi",
              position=(scale_bar_x, scale_bar_y - 0.02),
              space=:relative,
              align=(:center, :top),
              fontsize=14, color=:black)
    end

    return fig
end

# Example usage:
# Assuming you have loaded your shapefiles into GeoDataFrames
states = GeoDataFrames.read("data/2024_shp/cb_2024_us_state_500k.shp")
alaska = @rsubset(states, :STUSPS == "AK")
hawaii = @rsubset(states, :STUSPS == "HI")

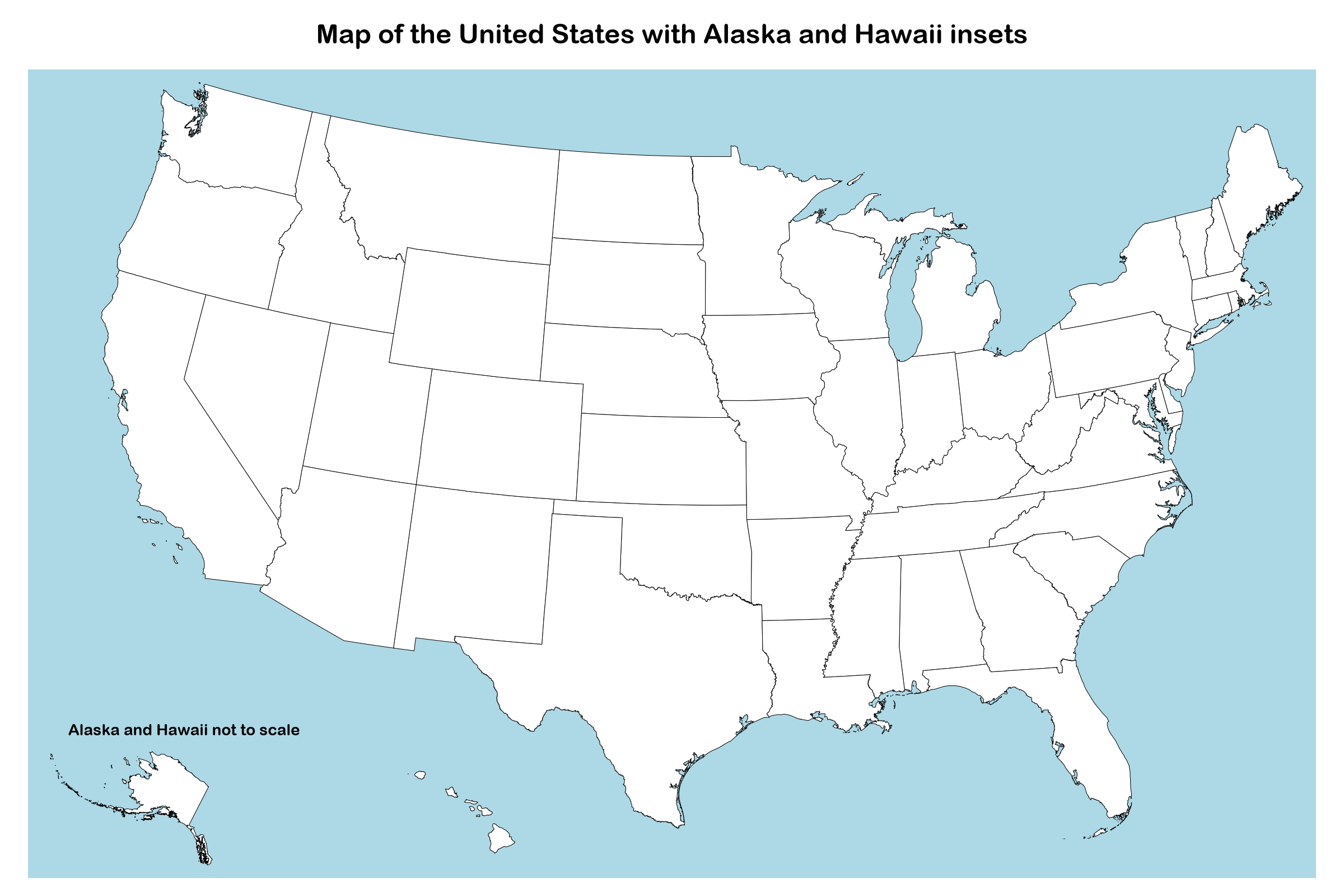

fig = plot_us_with_insets(states, alaska, hawaii, title="Map of the United States with Alaska and Hawaii insets")
#save("us_map_with_insets.png", fig)
